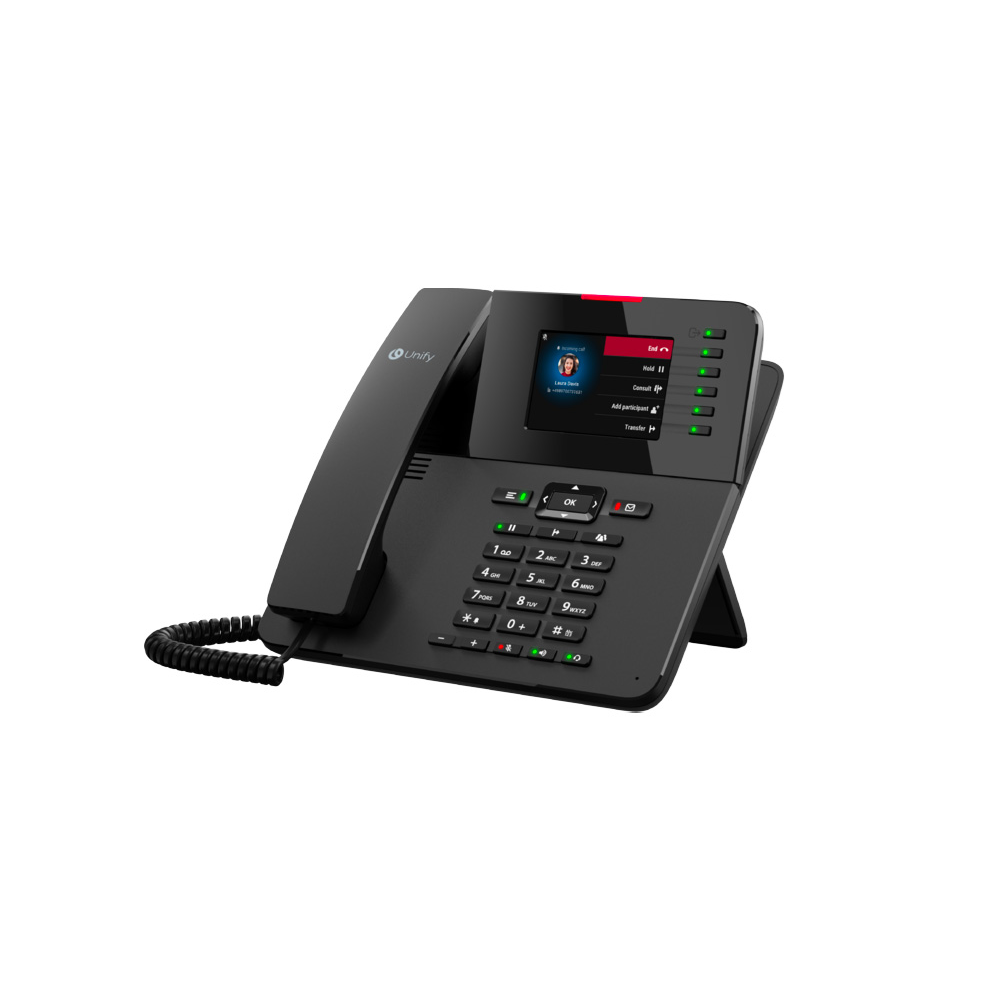

OpenScape Desk Phone CP410

Description

The ideal device for the demanding user. The high-resolution and high-contrast color TFT display shows context-sensitive states and actions beyond the pure labelling. These can be used with the 5 keys to the right of the display. These keys have an LED status indicator to guide the user in operation. Like the other phones in this device model family, it also offers the 6 fixed function keys, of which 4 keys also have an LED status. The OpenScape Desk Phone CP410 also offers Gigabit Ethernet and Energy Efficient Ethernet. Up to 4 KM410 or KM710 key modules can be connected; these fulfil the requirements for many freely programmable keys. The USB interface is provided to connect USB headsets and the CP10 WiFi stick.

Display

Tiltable graphical TFT display, 3.5” (480*320 pixel), color
LED backlight (white)
Signaling LED (red, green, amber)

5 context sensitive soft keys with LED
6 fixed function keys (menu/presence/voicemail/hold/transfer/conference)
4-way navigator, plus OK-key
3 audio keys (Mute/Speaker/Headset) with LED
Volume control +/-

Connectivity

Headset port (DHSG/EHS)
10/100/1000 Base-T Ethernet Switch
USB Interface
Up to 4 Key Module KM710 or 4 Key Module KM410
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af Power over Ethernet, class 2
connectable Key Modules using PoE: 1

Placement

Base, two different placement angles
Wall mountable
